[INCH-POUND]
A-A-50594
26 February 1992
COMMERCIAL ITEM DESCRIPTION
LAMP, INCANDESCENT, C-7
BAYONET, DOUBLE CONTACT
The General Services Administration has authorized the use of this commercial item description as a replacement for MS16123 which is canceled.
Abstract. This commercial item description covers C-7 incandescent lamps with a bayonet base which are used for radio set AN/URN-3 indicator lights. These lamps can be identified by industry number 10C7/1DC.
Salient characteristics.
1. Physical.
|
Bulb designation |
C-7 |
|
Bulb finish |
Clear |
|
Base designation |
Bayonet, double contact |
|
Filament type |
C-1 |
|
Light center length |
1-3/16 inches |
|
(distance from the center of the light source to the top of the base pins) |
|
|

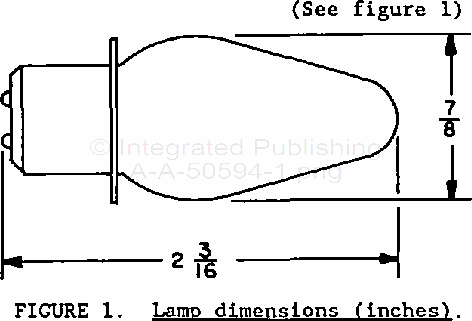

Dimensions |
(See figure 1) |
|
Beneficial comments, recommendations, additions, deletions, clarifications, etc., and any other data which may improve this document should be sent by letter to: Commander, Naval Sea Systems Command, Attn: 55Z3, Washington, DC 20362-5101. |
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
