A-A-50451 Lamp, Incandescent, Rp-11, Bayonet Candelabra, Double ContactThis commercial item description CID covers RP-11 incandescent lamps with a double contact bayonet candelabra base. These lamps can be identified by the industry numbers specified in the notes section herein.

Pages 1 - 2 - 3 - 4

A-A-50451A

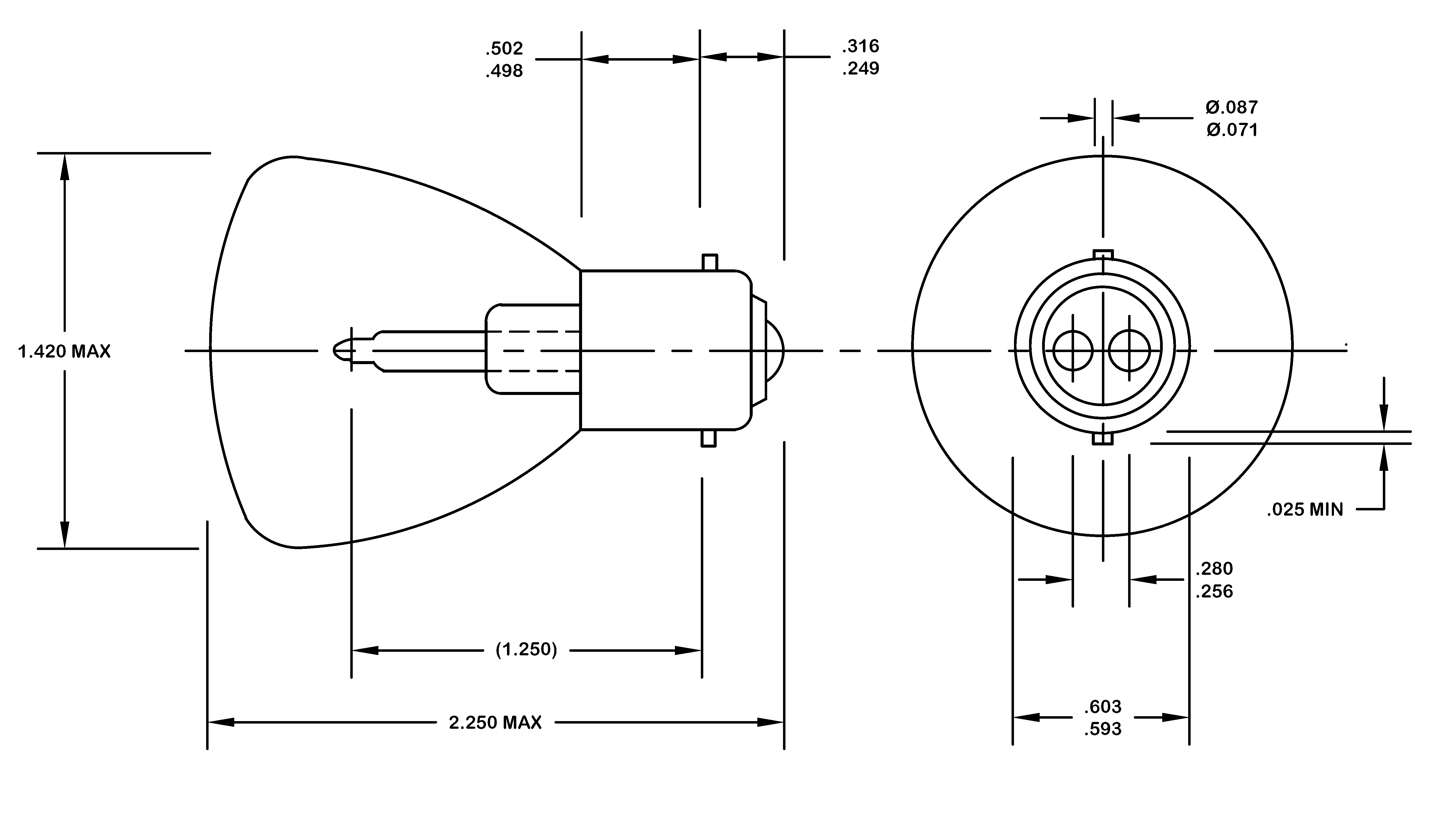

FIGURE 1. Lamp dimensions (inches).

2.2 Functional characteristics. The lamps shall conform to the functional characteristics of table I.

TABLE I. Functional characteristics.

CID part number	Mean spherical candlepower	Volts	Amps	Filament type	Life hours (avg.)
A50451-1	50	5.5	6.25	C-2V	100
A50451-2	32	6.2	3.91	C-2R	200
A50451-3	32	32.0	0.74	C-2V	100
A50451-4	32	12.5	1.98	C-2R	400
A50451-5 1	32/32	6.0/6.0	3.87/3.87	C-2V	125/125
A50451-6	50	12.5	3.04	C-2V	300
A50451-7 1	32/32	12.5/12.5	1.92/1.92	C-2R	300/300

1 CID part numbers A50451-5 and A50451-7 contain two filaments.

3. REGULATORY REQUIREMENTS

3.1 Recovered materials. The offeror/contractor is encouraged to use recovered materials to the maximum extent practicable, in accordance with paragraph 23.403 of the Federal Acquisition Regulation (FAR).
