[INCH-POUND]
A-A-50588
21 February 1992
COMMERCIAL ITEM DESCRIPTION
LAMP INCANDESCENT, T-3-1/4
MINIATURE BAYONET, SINGLE CONTACT
The General Services Administration has authorized the use of this commercial item description as a replacement for MS15571 which is canceled.
Abstract. This commercial item description covers T-3-1/4 incandescent lamps with a miniature bayonet base. These lamps can be identified by the industry numbers specified in the notes section herein.
Salient characteristics.
1. Physical.
|
Bulb designation |
T-3-1/4 |
|
Bulb finish |
(See lamp characteristics) |
|
Base designation |
Miniature bayonet, single contact |
|
Light center length |
(See lamp characteristics) |
|
(distance from the center of the light source to the top of the base pins) |
|
|

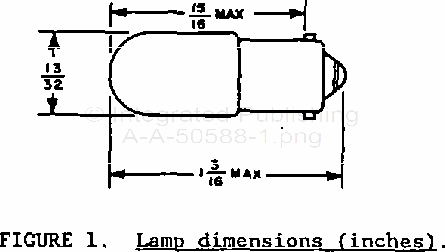

Dimensions |
(See figure 1) |
|
Beneficial comments, recommendations, additions, deletions, clarifications, etc., and any other data which may improve this document should be sent by letter to: Commander, Naval Sea Systems Command, Attn: 55Z3, Washington, DC 20362-5101. |
DISTRIBUTION STATEMENT A. Approved for public release; distribution is unlimited.
