MIL-DTL-15098/11C
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only and are based upon 1 inch = 25.4 mm.
3. No portion of the bulb shall be more than .125 (3.18 mm) from the extended lamp base axis.

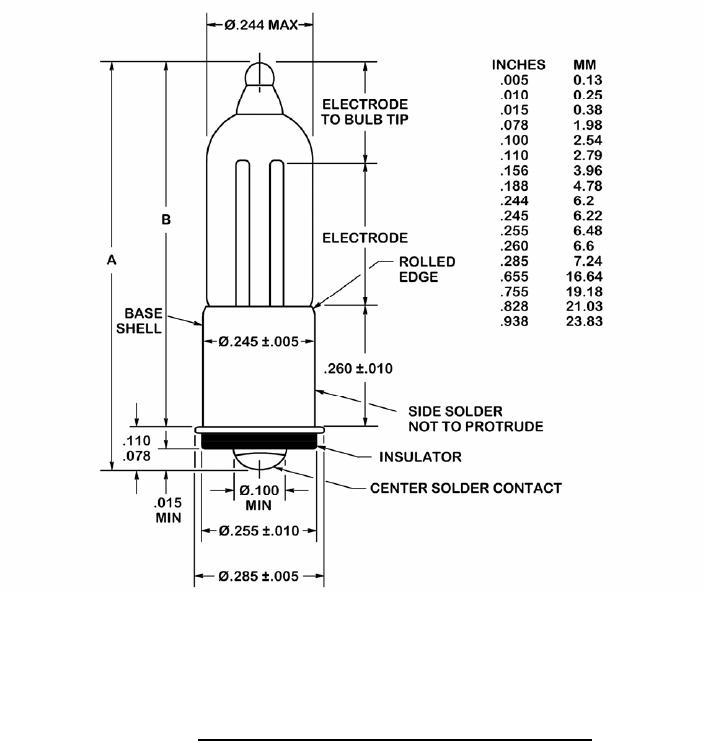

FIGURE 1. Indicator glow lamp, types C7A, C9A, A1G, and A1H.
2
