A-A-52409A
Rated
Rated
Design
Filament
Former
Former part
avg. lab
type
PIN no.
MS part no.
no.
Volts Watts
Volts Amps
life
AA52409-4435
MS18005-4435
ORD 446660
12.0
30.0
12.8
2.34
CC-6
100 hrs.
AA52409-4525
MS18005-4525
-
3.7
2.2
3.7
0.60
C-6
200 hrs.
AA52409-4530
MS18005-4530
ORD 193141
24.0
135.0
26.0
5.20
4CC-8
50 hrs.
AA52409-4533
MS18005-4533
ORD 193138
6.0
40.0
6.5
6.20
5C-8
50 hrs.
AA52409-4535
MS18005-4535
ORD 444279
6.0
30.0
6.4
4.69
C-6
100 hrs.
AA52409-4572
MS18006-4572
ORD 573141
24.0
150.0
28.0
5.36
CC-6
300 hrs.
Description: Clear glass lens, PAR46, filament shield for all except AA52409-4525 and AA52409-4572
AA52409-4525 - Clear glass lens, PAR46
AA52409-4572 - Clear glass prismatic lens, PAR46
NOTES:
1. Dimensions are in inches.
2. Untoleranced dimensions are nominal and to be used for reference only.

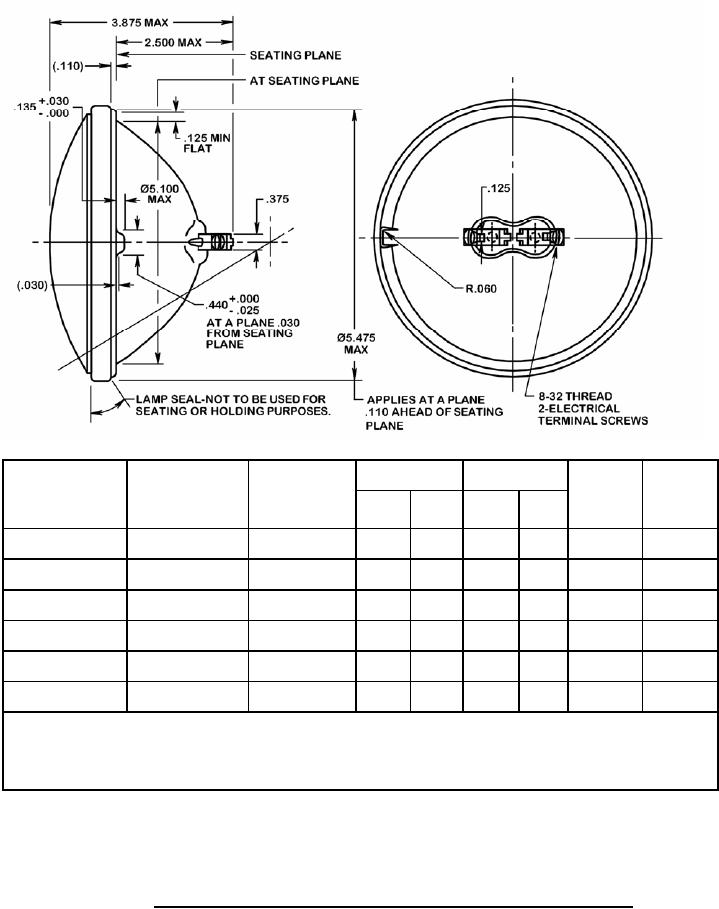

FIGURE 1. Incandescent sealed beam spot/flood lamps, 2-screw terminal type.
