A-A-52463B
|
Type I PIN Number |
Candle Power |
Design |
Filament Constr. |
Average Life (hours) |
Former MS Part Numbers |
|
|
Volts |
Amps |
|||||
|
AA52463-A01 |
3 + 20% |
7.00 |
0.63 + 20% |
C-2R |
1000 |
MS15570-63 |
|
AA52463-A02 |
3 + 8% (2) |
7.00 |
0.60 + 5% |
C-2R |
1000 |
MS15570-63R |
|
AA52463-A03 |
6 + 20% |
6.50 |
1.02 + 20% |
C-2R |
500 |
MS15570-81 |
|
AA52463-A04 |
4 + 15% |
13.50 |
0.59 + 8% |
C-2R (3) |
2000 |
MS15570-67 |
|
AA52463-A05 |
6 + 15% |
13.00 |
0.58 + 8% |
C-2R |
750 |
MS15570-89 |
|
AA52463-A06 |
6 + 20% |
28.00 |
0.30 + 10% |
C-2F |
500 |
MS15570-303 |
|
AA52463-A07 |
6 + 20% (2) |
28.00 |
0.30 + 10% |
C-2F |
500 |
MS15570-303R |
|
AA52463-A08 |
3 + 20% |
28.00 |
0.23 + 10% |
2C-2F |
1000 |
MS15570-1251 |
|
AA52463-A09 |
6 + 20% |
28.00 |
0.37 + 10% |
2C-2F |
1000 |
MS15570-623 |
NOTES: 1. Bulbs for PIN numbers AA52463-A02 and AA52463-A07 are to be red.
2. “Candle power” applies to the lamp before red coating is applied.
3. Light center length is 0.81 inches.
4. Dimensions are in inches (see 3.2) and are shown for engineering reference purposes only. Do not scale.
5. International interest: QSTAG 122, NATO STANAG 4008.

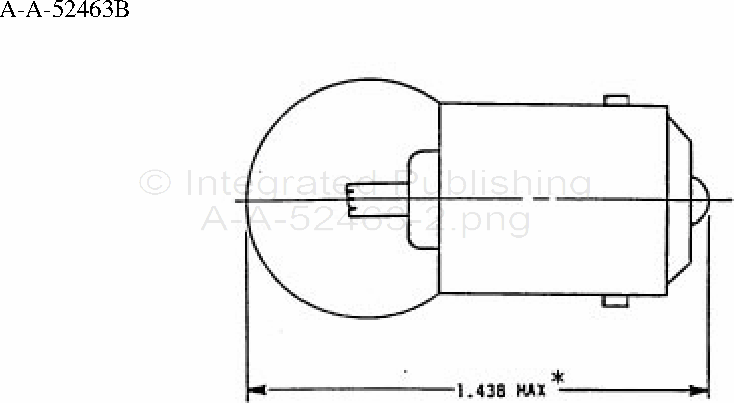

FIGURE 1. BA15s Candelabra single-contact bayonet base, G6 bulb (type I).
