A-A-52463 Lamp Bulbs, Incandescent, Miniature, Single And Double Contact, Bayonet Candelabra BaseThis CID covers requirements for four types of miniature incandescent lamps used in military ground vehicles.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8

A-A-52463B

* see note 3.

Type IV PIN Number	Trade Number	Watts	Design		Filament Construction	Average Life (hours)	Former MS Part Numbers
Type IV PIN Number	Trade Number	Watts	Volts	Amps	Filament Construction	Average Life (hours)	Former MS Part Numbers
AA52463-D01	1383	20	13	1.54	C-8	300	MS35480-1
AA52463-D02	1385	20	28	0.714	CC-8	300	MS35480-2
AA52463-D03	1384	20	6	3.33	C-8	300	MS35480-3

NOTES: 1. Frosted area shall be acid etched or applied by sand blasting exterior surface (see 3.3.1 for reflectorized area).

2. Dimensions are in inches (see 3.2) and are shown for engineering reference purposes only. Do not scale.

3. International interest: QSTAG 122, NATO STANAG 4008.

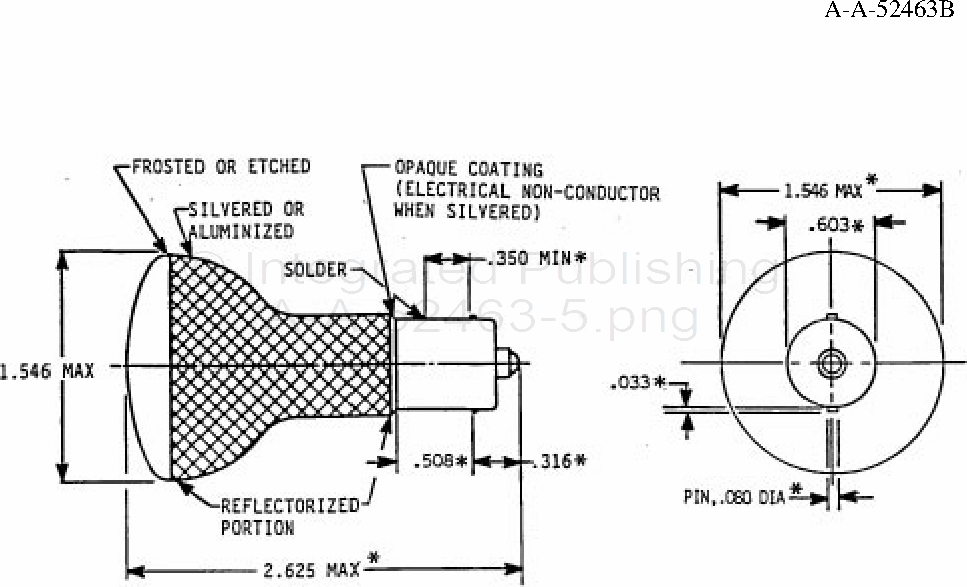

FIGURE 4. BA15s Candelabra single-contact, bayonet base, R12 bulb (type IV).

3.3 Coating. The bulbs shall be clear unless otherwise indicated as being red color coated, reflectorized coated, or reflectorized coated-frosted (see figures). Coatings shall firmly adhere and be uniform without discoloring, cracking, fading or peeling.
