A-A-52463B
* see note 5.
|
Type II PIN Number |
Candle Power |
Design |
Filament Construction |
Average Life (hours) |
Former MS Part Numbers |
||
|
Volts |
Amps |
|
(optional) |
||||
|
AA52463-B01 |
21 ± 7% |
6.40 |
2.63 ± 4% |
C-6 |
|
200 |
MS35478-1129 |
|
AA52463-B02 |
15 ± 9% |
6.75 |
1.91 ± 5% |
C-2R |
C-6 |
300 |
MS35478-87 |
|
AA52463-B03 |
15 ± 9% |
12.80 |
1.04 ± 5% |
C-2R |
C-6 |
500 |
MS35478-93 |
|
AA52463-B04 |
21 ± 10% |
12.80 |
1.44 ± 6% |
C-6 |
|
500 |
MS35478-1141 |
|
AA52463-B05 |
15 ± 15% |
28.00 |
0.51 ± 8% |
C-2V |
|
300 |
MS35478-305 |
|
AA52463-B06 |
21 ± 15% |
28.00 |
0.67 ± 8% |
C-2V |
|
300 |
MS35478-307 |
|
AA52463-B07 |
21 ± 15% (3) |
28.00 |
0.67 ± 8% |
C-2V |
|
300 |
MS35478-307SB |
|
AA52463-B08 |
21 ± 15% (3) |
28.00 |
0.67 ± 8% |
C-2V |
|
300 |
MS35478-307R |
|
AA52463-B09 |
32 ± 10% |
28.00 |
0.90 ± 8% |
C-2V |
|
300 |
MS35478-315 |
|
AA52463-B10 |
32 ± 15% |
28.00 |
1.02 ± 8% |
2C-2R |
2C-6 |
500 |
MS35478-1683 |
|
AA52463-B11 |
15 ± 10% |
28.00 |
0.61 ± 8% |
2C-2R |
2C-2V |
1000 |
MS35478-1691 |
|
AA52463-B12 |
32 ± 10% |
6.00 |
4.10 ± 8% |
C-6 |
|
300 |
MS35478-1680 |
|
AA52463-B13 |
32 ± 10% |
12.80 |
1.80 ± 5% |
C-6 |
|
200 |
MS35478-1073 |
|
AA52463-B14 |
21 ± 15% |
28.00 |
0.80 ± 8% |
C-2V |
|
1000 |
MS35478-1665IF |
|
AA52463-B15 |
18 ± 25% |
28.00 |
.643 ± 10% |
CC-8 |
|
2000 |
MS35478-2232 |
|
AA52463-B16 |
21 ± 25% |
28.00 |
.766 ± 10% |
CC-8 |
|
2000 |
MS35478-2233 |
|
AA52463-B17 |
32 |
4 |
0.75 |
C-6 |
|
50 |
MS35478-BFT |
|
AA52463-B18 |
21 approx. |
6.4 |
2.69 |
C-2V |
|
200 |
MS35478-1605 |
NOTES: 1. Bulb for PIN AA52463-B07 has a reflectorized coating which covers the top of the bulb to the filament center (see 3.3).
2. Bulb for PIN AA52463-B08 is red.
3. “Candle power” applies to the lamp before red or reflective coating is applied.
4. Dimensions are in inches (see 3.2) and are shown for engineering reference purposes only. Do not scale.
5. International interest: QSTAG 122, NATO STANAG 4008.

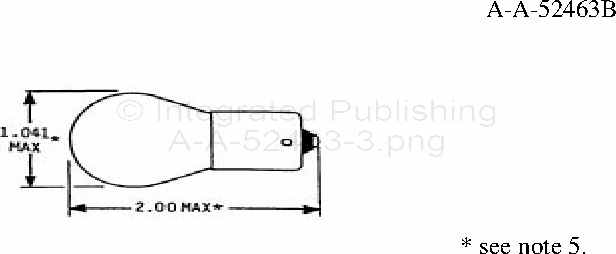

FIGURE 2. BA15s Candelabra single-contact, bayonet base, S8 bulb (type II).
