MIL-DTL-15098 Lamps, Glow, General Specification ForThis specification covers hermetically sealed glow lamps containing gases or vapor in which luminosity is produced by ionization of these gases for indicating and circuit control functions. The region of high luminosity is near the negative electrode \(or cathode\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20

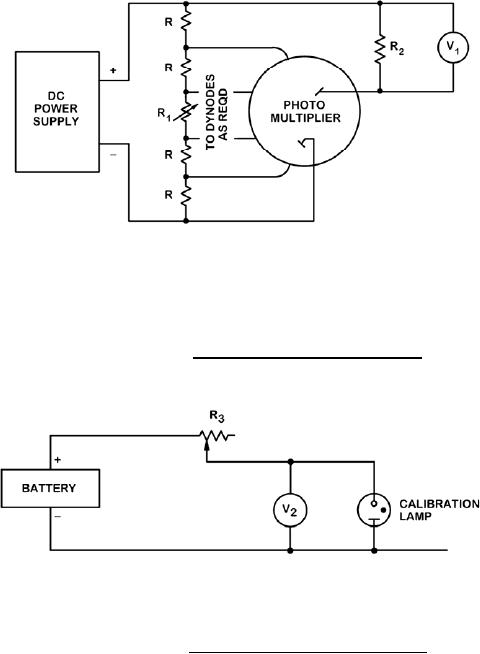

MIL-DTL-15098E
R
-
Voltage divider resistors ­ as required.
-
Calibration resistor.
R1
-
Photomultiplier load resistor.
R2
V1
-
Voltmeter ­ minimum 10 megohms input resistance.
FIGURE 3. Photomultiplier wiring diagram.
R3
- Voltage dropping resistor.
- Voltmeter ­ minimum 10 megohms input resistance.
V2
FIGURE 4. Calibration lamp wiring diagram.
14
