MIL-DTL-15098 Lamps, Glow, General Specification ForThis specification covers hermetically sealed glow lamps containing gases or vapor in which luminosity is produced by ionization of these gases for indicating and circuit control functions. The region of high luminosity is near the negative electrode \(or cathode\).

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20


MIL-DTL-15098E
R4
-
Series resistor for glow lamp (see 3.4)
T
-
Variable transformer.
MA
-
Milliammeter ­ low reading.
-
Voltmeter ­ minimum 10 megohms input resistance.
V3
NOTE:
1. AC test voltage shall be 120 VAC, 60 Hz sine wave, with harmonic content not more than 3 percent
rms of the fundamental.

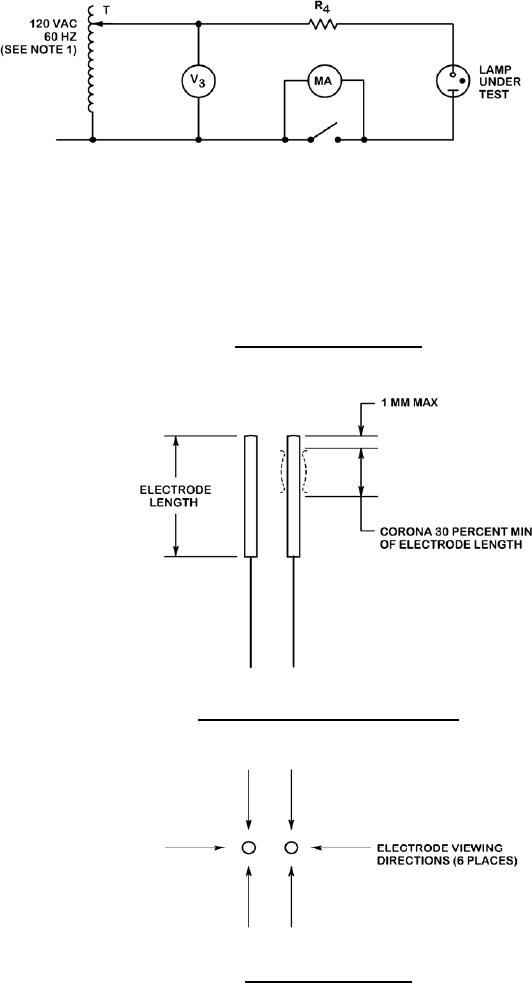

FIGURE 5. Test lamp wiring diagram.
FIGURE 6. Corona distribution at electrode tips.
FIGURE 7. Top view of electrodes.
